Turnbuckle Closed Body Tensile Structure Jaw/Jaw Stainless Steel 304
$38.00 – $150.00

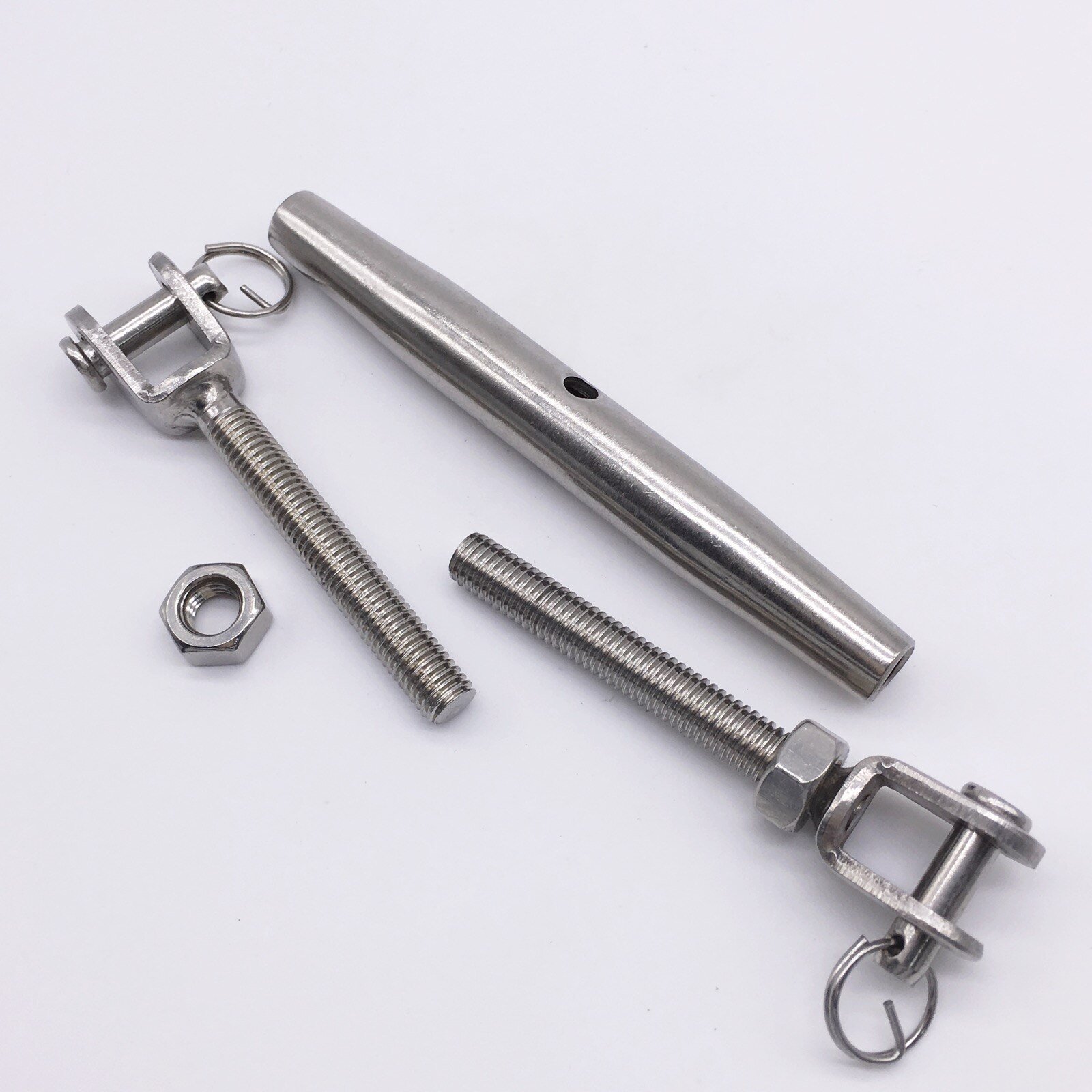

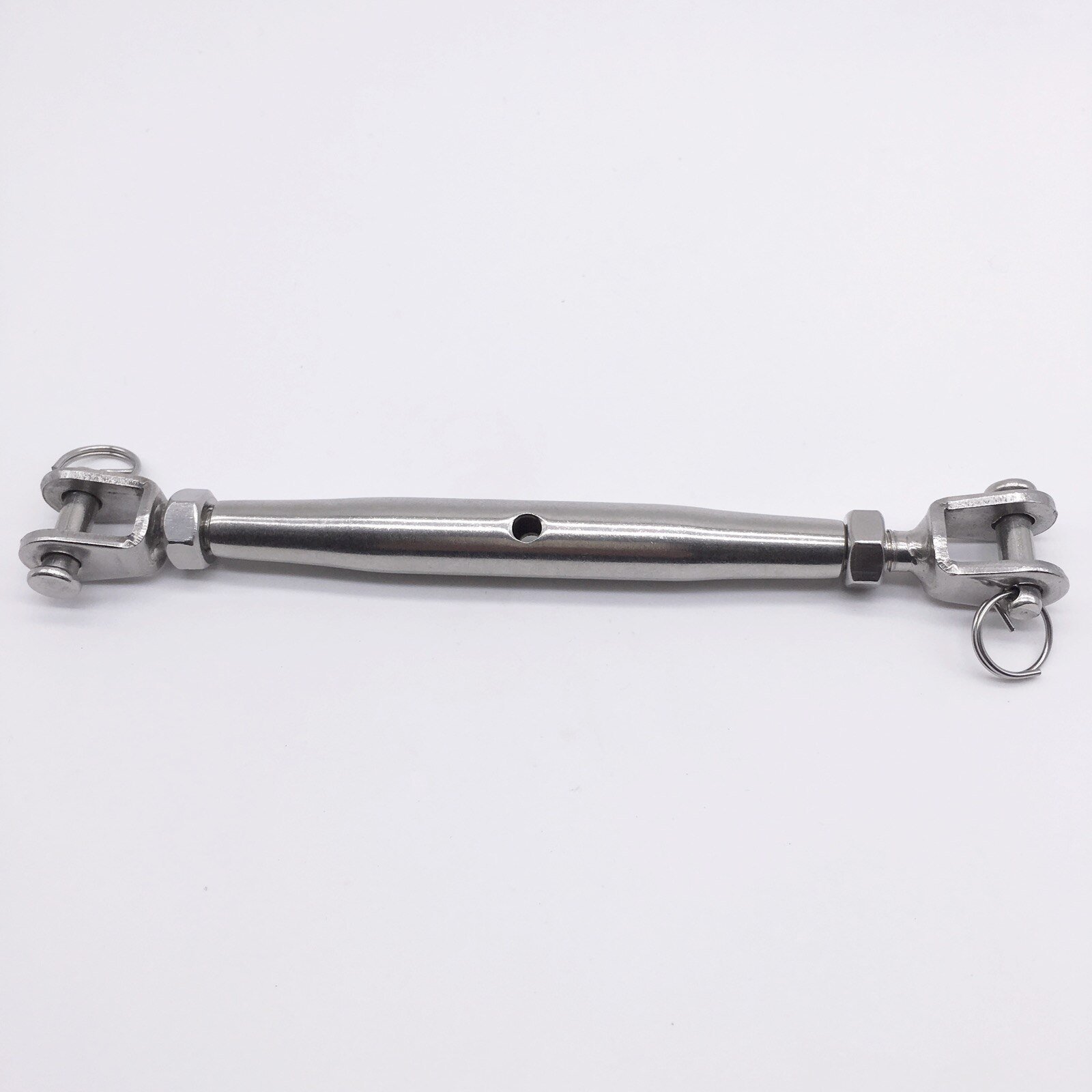

Turnbuckle Closed Body Tensile Structure Jaw/Jaw,
material stainless steel 304 have good chemical resistance

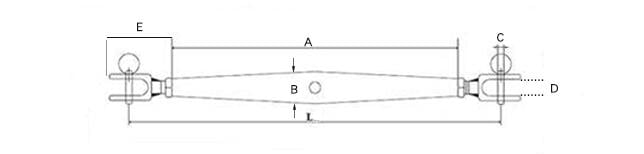

| Thread Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | L (mm) | Longest (mm) | kg/pc | W.L.L (kg) |
| M5 | 80 | 8 | 5 | 7.5 | 9 | 120 | 190 | 0.05 | 40 |
| M6 | 95 | 10 | 6 | 9 | 10 | 150 | 230 | 0.082 | 100 |
| M8 | 105 | 13 | 8 | 11 | 11 | 165 | 250 | 0.165 | 200 |
| M10 | 125 | 17 | 9 | 12 | 14 | 200 | 280 | 0.3 | 300 |
| M12 | 150 | 21 | 12 | 14 | 20 | 250 | 360 | 0.53 | 500 |
| M14 | 165 | 22 | 12 | 15 | 22 | 270 | 390 | 0.66 | 650 |
| M16 | 190 | 27 | 16 | 17 | 26 | 310 | 450 | 1.17 | 800 |
| M20 | 210 | 33 | 19 | 20 | 30 | 360 | 520 | 1.9 | 1200 |
| M22 | 270 | 38 | 20 | 30 | 35 | 450 | 655 | 3.1 | 1600 |
| M24 | 315 | 42 | 22 | 30 | 47 | 520 | 750 | 4.1 | 2500 |
