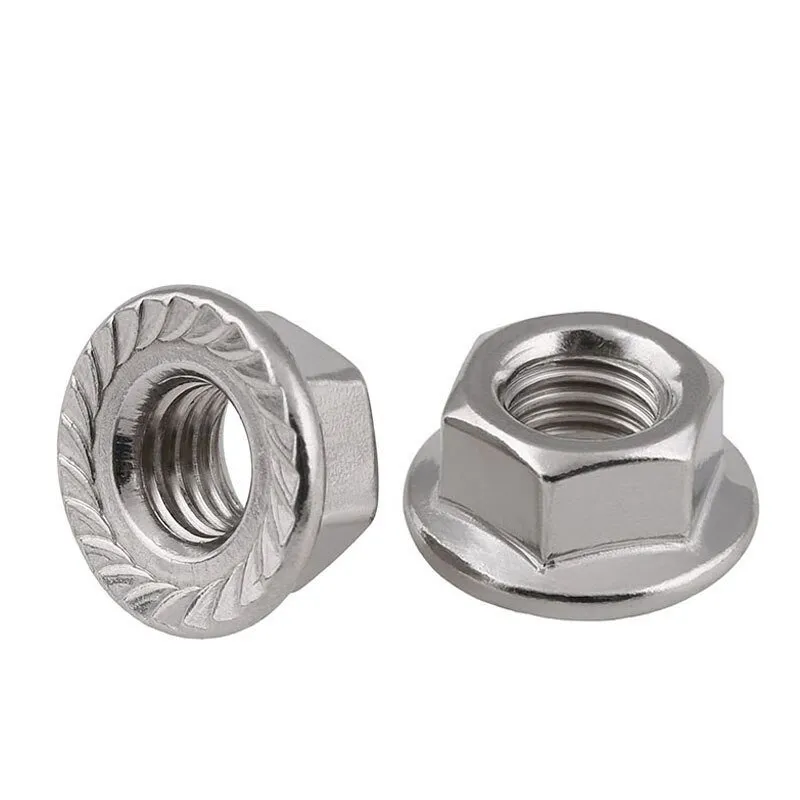

Stainless Steel 316 Flange Nuts
$10.00 – $26.00
Stainless Steel 316 Flange Nuts Hex Right Threads Size M3-M20
unit: mm
| size | m | s | dc |
| M3 | 3.7 | 5.9 | 7.6 |
| M4 | 4.3 | 6.8 | 9.1 |
| M5 | 4.8 | 7.8 | 10.5 |
| M6 | 5.4 | 9.6 | 12.95 |
| M8 | 7 | 12.9 | 16.4 |
| M10 | 8.6 | 14.8 | 21.6 |
| M12 | 9.9 | 17.8 | 23.5 |
| M16 | 13.6 | 23.7 | 31.3 |
| Type | Flange Nuts |
|---|---|
| Material | Stainless Steel 316 |
| Measure System | Metric |
| Nuts Style | Hex |
| Thread Direction | Right |
| Thread Spacing | Coarse |
