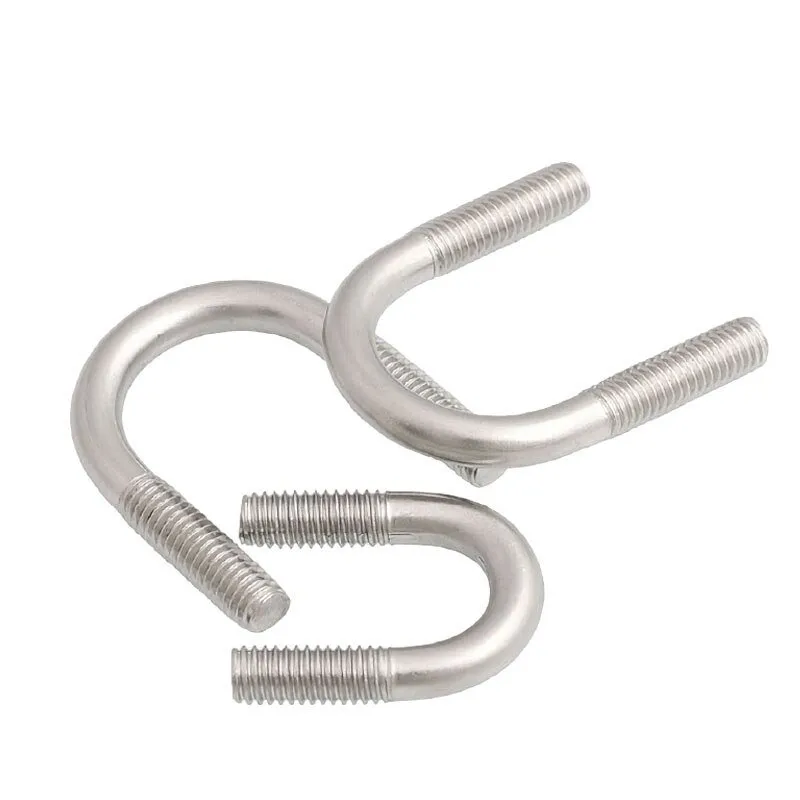

Stainless Steel 304 U Bolts

Name: Stainless Steel 304 U Bolts
SKU: 1005001822751890
Availability: InStock

$8.06 – $30.00

Dimensions

Clear

WKOOA PN: 1005001822751890 Categories: Bolts, U Bolts

Stainless Steel 304 U Bolts use for pipe, also square u bolts or other fasteners contact us

Threads size M6 M8 M10 M12 M14 M16

Unit: mm
M6
Size	A	B	C	D	M	L
M6*8	9	5.3	12	6	15	25
M6*10	11	5.3	13	6	17	27
M6*12	13	5.3	14	6	19	29
M6*14	15	5.3	15	6	21	32
M6*16	17	5.3	15	6	23	34
M6*18	20	5.3	18	6	26	36
M6*22	24	5.3	22	6	30	42
M6*25	27	5.3	22	6	33	45
M6*27	29	5.3	25	6	35	47
M6*33	35	5.3	25	6	41	53
M6*38	40	5.3	28	6	46	58
M6*42	44	5.3	28	6	50	62
M6*45	47	5.3	30	6	53	65
M6*48	50	5.3	30	6	56	68
M6*51	53	5.3	30	6	59	71
M6*57	59	5.3	30	6	65	77
M6*60	62	5.3	30	6	68	80
M6*63	65	5.3	30	6	71	83
M6*76	78	5.3	35	6	84	96
M6*89	91	5.3	35	6	97	109
M6*102	104	5.3	35	6	110	122
M6*108	110	5.3	35	6	116	128
M6*114	116	5.3	35	6	122	134
M6*133	135	5.3	35	6	141	153
M8
Size	A	B	C	D	M	L
M8*22	24	7.1	25	8	32	49
M8*25	27	7.1	25	8	35	52
M8*27	29	7.1	28	8	37	54
M8*33	35	7.1	28	8	43	60
M8*38	40	7.1	30	8	48	65
M8*42	44	7.1	30	8	52	69
M8*45	47	7.1	30	8	55	72
M8*48	50	7.1	30	8	58	73
M8*51	53	7.1	30	8	61	78
M8*57	59	7.1	30	8	67	84
M8*60	62	7.1	30	8	70	87
M8*63	65	7.1	30	8	73	90
M8*76	78	7.1	30	8	86	103
M8*89	91	7.1	30	8	99	116
M8*102	104	7.1	40	8	112	129
M8*108	110	7.1	40	8	118	135
M8*114	116	7.1	40	8	124	141
M8*133	135	7.1	45	8	143	160
M8*140	142	7.1	45	8	150	167
M8*159	161	7.1	50	8	169	189
M8*168	170	7.1	50	8	178	198
M8*219	221	7.1	55	8	229	253
M8*273	275	7.1	55	8	283	313
M10
Size	A	B	C	D	M	L
M10*22	24	8.9	28	10	34	53
M10*25	27	8.9	28	10	37	56
M10*27	29	8.9	28	10	39	58
M10*33	35	8.9	28	10	45	64
M10*38	42	8.9	30	10	50	69
M10*42	44	8.9	30	10	54	73
M10*45	47	8.9	30	10	57	76
M10*48	50	8.9	35	10	60	82
M10*51	53	8.9	35	10	63.	85
M10*57	59	8.9	35	10	69	91
M10*60	62	8.9	35	10	72	94
M10*63	65	8.9	35	10	75	97
M10*76	78	8.9	40	10	88	110
M10*89	91	8.9	40	10	101	123
M10*102	104	8.9	40	10	114	136
M10*108	110	8.9	40	10	120	142
M10*114	116	8.9	45	10	126	148
M10*133	135	8.9	45	10	145	167
M10*140	142	8.9	45	10	152	174
M10*159	161	8.9	50	10	171	193
M10*168	170	8.9	50	10	180	202
M10*219	221	8.9	55	10	231	263
M10*273	275	8.9	65	10	285	322
M10*325	327	8.9	65	10	337	378
M10*377	379	8.9	65	10	389	432
M12
Size	A	B	C	D	M	L
M12*42	44	10.8	35	12	56	78
M12*45	47	10.8	35	12	59	81
M12*48	50	10.8	35	12	62	84
M12*51	53	10.8	35	12	65	87
M12*57	59	10.8	35	12	71	93
M12*60	62	10.8	35	12	74	96
M12*63	65	10.8	35	12	77	99
M12*76	78	10.8	40	12	90	114
M12*89	91	10.8	40	12	103	127
M12*102	104	10.8	40	12	116	140
M12*108	110	10.8	40	12	122	146
M12*114	116	10.8	40	12	128	152
M12*133	135	10.8	40	12	147	171
M12*140	142	10.8	40	12	154	178
M12*159	161	10.8	55	12	173	200
M12*168	170	10.8	55	12	182	209
M12*219	221	10.8	55	12	233	260
M12*273	275	10.8	55	12	287	314
M12*325	327	10.8	55	12	339	366
M12*377	379	10.8	60	12	391	420
M12*426	428	10.8	60	12	440	472

Material	Stainless Steel 304

Stainless Steel 304 U Bolts
