Stainless Screws Wafer Head Black
$12.12 – $34.30
- Color: Black
- Material Stainless Steel 304
- Size = thread diameter x Length(measured from under the head)
- unit: mm

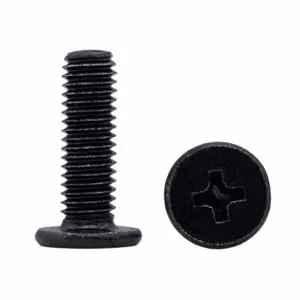

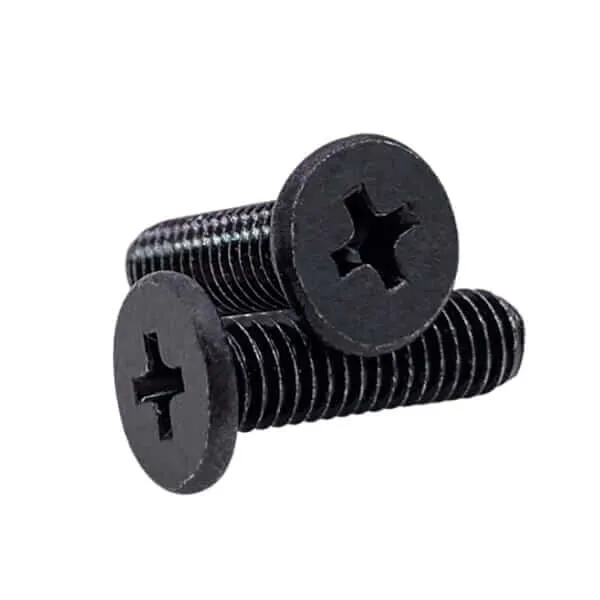

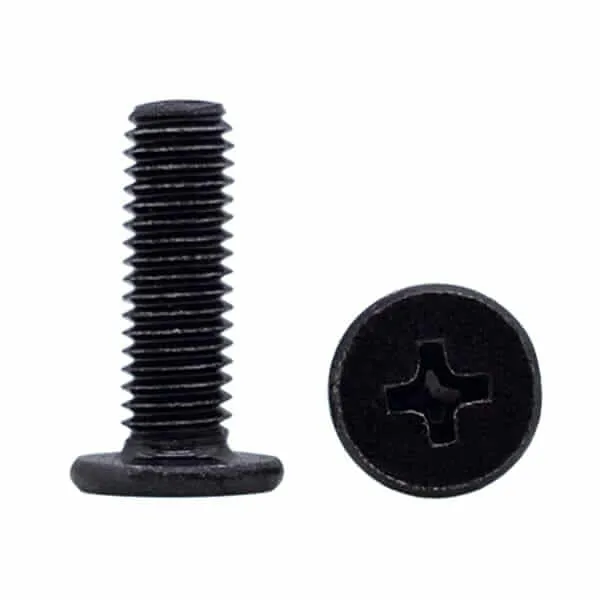

Wafer Head Screws Stainless Black Color Phillips Drive
unit: mm

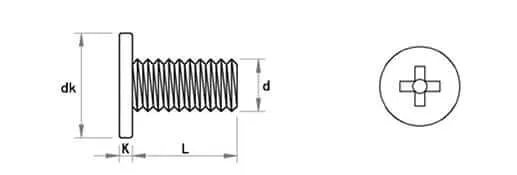

| Size | Pitch | dk | k |
| M1.6 | 0.35 | 3 | 0.6-0.8 |
| s-M1.6 | 0.35 | 4.5 | 0.6-0.8 |
| M2 | 0.4 | 3.8-4 | 0.8-0.9 |
| M2.5 | 0.45 | 4.8-5 | 0.8-0.9 |
| M3 | 0.5 | 6.8-7 | 0.9-1.0 |
| M4 | 0.7 | 7.8-8 | 1.2-1.3 |
| M5 | 0.8 | 8.6-9.5 | 1.3-1.4 |
| M6 | 1.0 | 11.8-12 | 1.3-1.4 |
| Drive Style | Phillips |
|---|---|
| Head Style | Wafer |
| Material | Stainless Steel 304 |
| Measure System | Metric |
| Thread Direction | Right |
| Thread Spacing | Coarse |
| Threading | Full Threaded |
