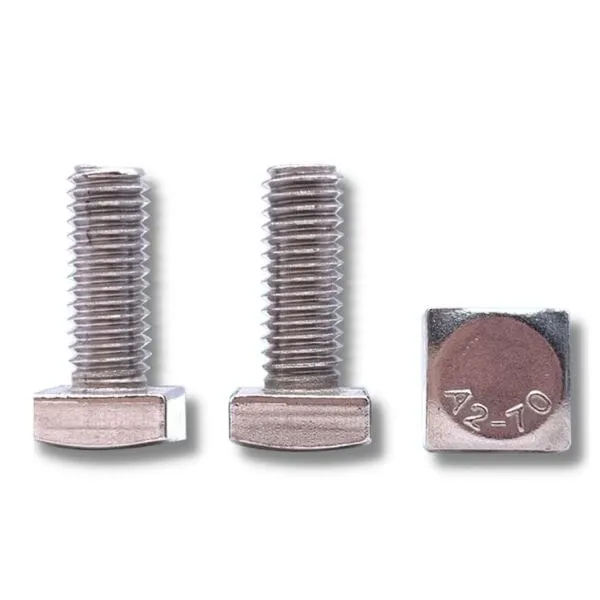

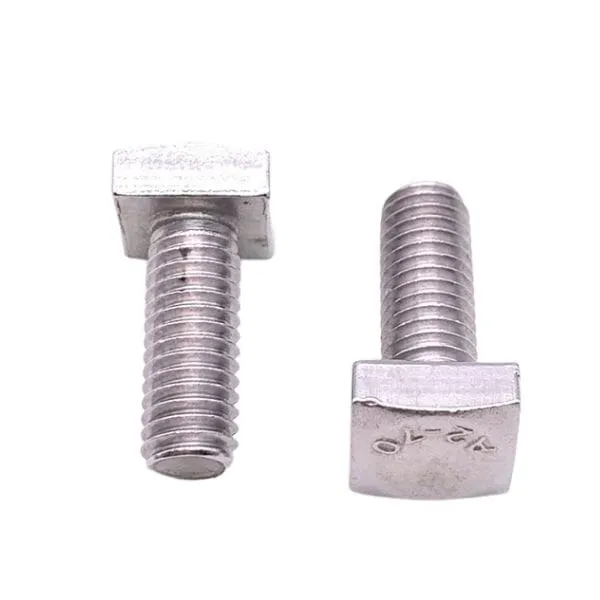

Square Head Bolts Stainless Steel
$9.86 – $32.00
- Size = Thread diameter x Length
- Length measured from under the head
- Material Stainless Steel 304 (A2-70)
- unit: mm
Square Head Bolts Stainless Steel 304 (A2-70)
| Thread | Pitch | Head Thick.(k) | s |
| M4 | 0.7 | 2.7-3.24 | 6.64-7 |
| M5 | 0.8 | 3.26-3.74 | 7.64-8 |
| M6 | 1.0 | 3.76-4.24 | 9.64-10 |
| M8 | 1.25 | 4.76-5.24 | 12.57-13 |
| M10 | 1.5 | 5.76-6.24 | 15.57-17 |
| M12 | 1.75 | 6.71-7.29 | 17.57-19 |
| Head Style | Square |
|---|---|
| Material | Stainless Steel 304 |
| Measure System | Metric |
| Thread Direction | Right |
| Thread Spacing | Coarse |
| Threading | Full Threaded |
