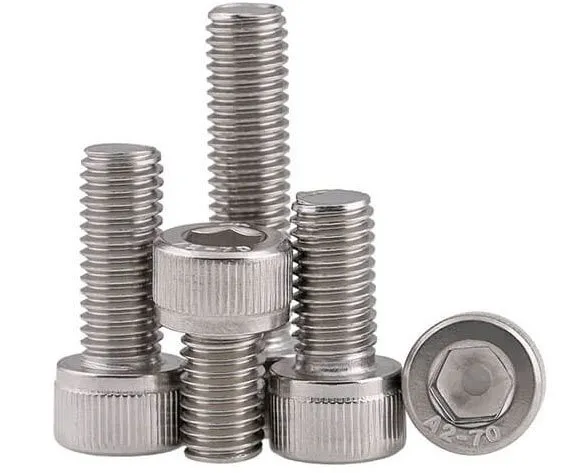

Socket Cap Screws Hex Head Stainless Steel 304

$10.30 – $48.00

Size = thread x Length
Length measured from under the head

Size

Description
Product Enquiry

Cap Screws Stainless Steel 304 has good chemical resistance also known as 18-8 stainless steel

Size from small to big (M1.4-M24)

unit: mm

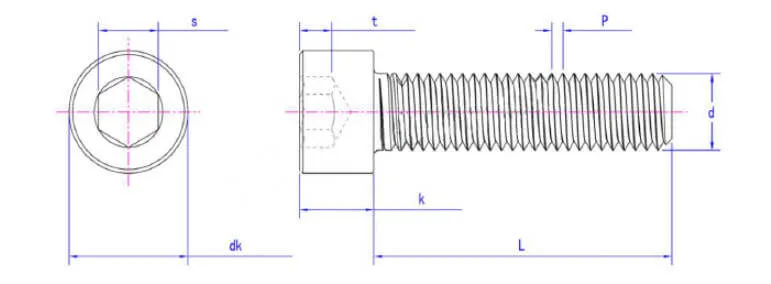

Size	Pitch	dk	k	s	t
M1.4	0.3	2.46-2.6	1.26-1.4	1.32-1.36	0.6
M1.6	0.35	2.86-3	1.46-1.6	1.52-1.56	0.7
M2	0.4	3.62-3.8	1.86-2	1.52-1.56	1
M2.5	0.45	4.32-4.5	2.36-2.5	2.02-2.06	1.1
M3	0.5	5.32-5.5	2.86-3	2.52-2.58	1.3
M4	0.7	6.78-7.2	3.82-4	3.02-3.08	2
M5	0.8	8.28-8.72	4.82-5	4.02-4.1	2.5
M6	1.0	9.78-10.22	5.7-6.0	5.02-5.14	3
M8	1.25	12.73-13.27	7.64-8	6.02-6.14	4
M10	1.5	15.73-16.27	9.64-10	8.02-8.175	5
M12	1.75	17.73-18.27	11.57-12	10.02-10.175	6
M14	2.0	20.67-21.33	13.57-14	12-12.2	7
M16	2.0	23.67-24.33	15.57-16	14-14.2	8
M18	2.5	26.67-27.33	17.73-18	14-14.2	9
M20	2.5	29.67-30.3	19.67-20	17-17.23	10
M24	3.0	35.6-36.4	23.48-24	19-19.27	12
