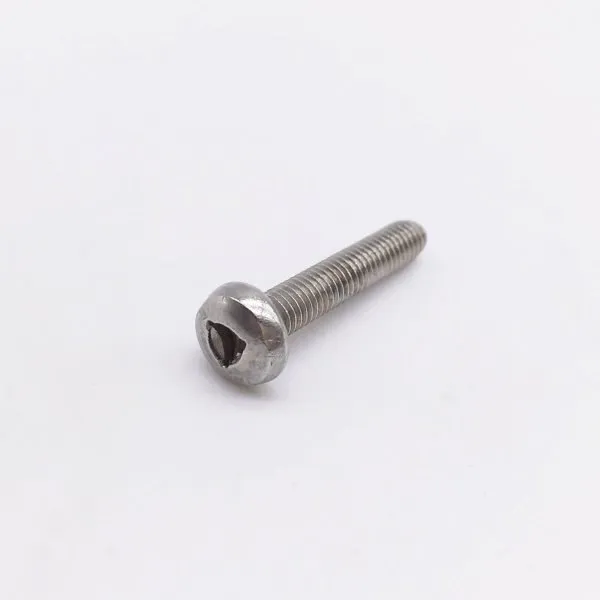

Security Screws Triangle Pan Head Screw Material Stainless Steel 304

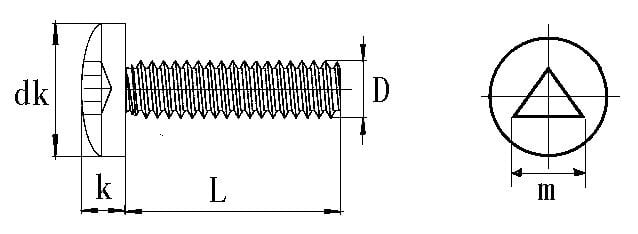

| Thread Size (d) | Pitch | Head Dia. (dk) | Head Thickness (k) | m |
| M2 | 0.4 | 4-3.7 | 1.72-1.48 | 1.8 |
| M2.5 | 0.45 | 5-4.7 | 2.12-1.88 | 1.8 |
| M3 | 0.5 | 6-5.7 | 2.52-2.28 | 2.3 |
| M4 | 0.7 | 8-7.64 | 3.25-2.95 | 2.3 |
| M5 | 0.8 | 10-9.64 | 3.95-3.65 | 2.6 |
| M6 | 1.0 | 12-11.37 | 4.75-4.45 | 3.0 |
| M8 | 1.25 | 16-15.57 | 6.15-5.85 | 4.0 |
| Size | M3x6, M3x8, M3x10, M3x12, M3x16, M4x6, M4x8, M4x10, M4x12, M4x16, M4x20 |
|---|
