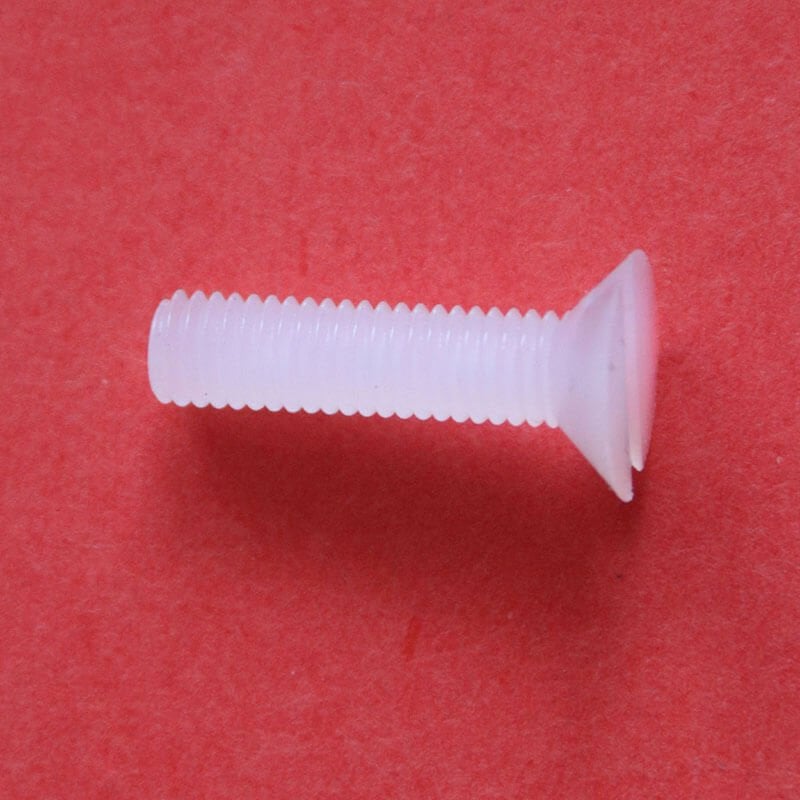

PVDF Screws Slotted Flat Head
$18.00 – $35.00
- Size = Thread diameter x Length
- Length measured the whole screw
- Unit: mm

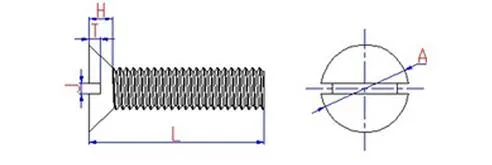

PVDF Screws Slotted Flat Head Metric Size M3-M10
| Thread Dia. | Pitch | H | A | T |
| M2 | 0.4 | 1.2 | 3.5-4.4 | 0.5-0.6 |
| M3 | 0.5 | 1.7 | 5.2-6.3 | 0.8-1.0 |
| M4 | 0.7 | 2.7 | 8.0-9.4 | 1.2-1.5 |
| M5 | 0.8 | 2.7 | 8.9-10.4 | 1.2-1.5 |
| M6 | 1.0 | 4.3 | 10.9-12.6 | 1.6-1.9 |
| M8 | 1.25 | 4.6 | 15.4-17.3 | 2.0-2.3 |
| M10 | 1.5 | 5 | 17.8-20 | 2.5 |
| Drive Style | Slotted |
|---|---|
| Head Style | Countersunk/Flat |
| Material | PVDF |
| Measure System | Metric |
| Thread Direction | Right |
| Thread Spacing | Coarse |
| Threading | Full Threaded |
