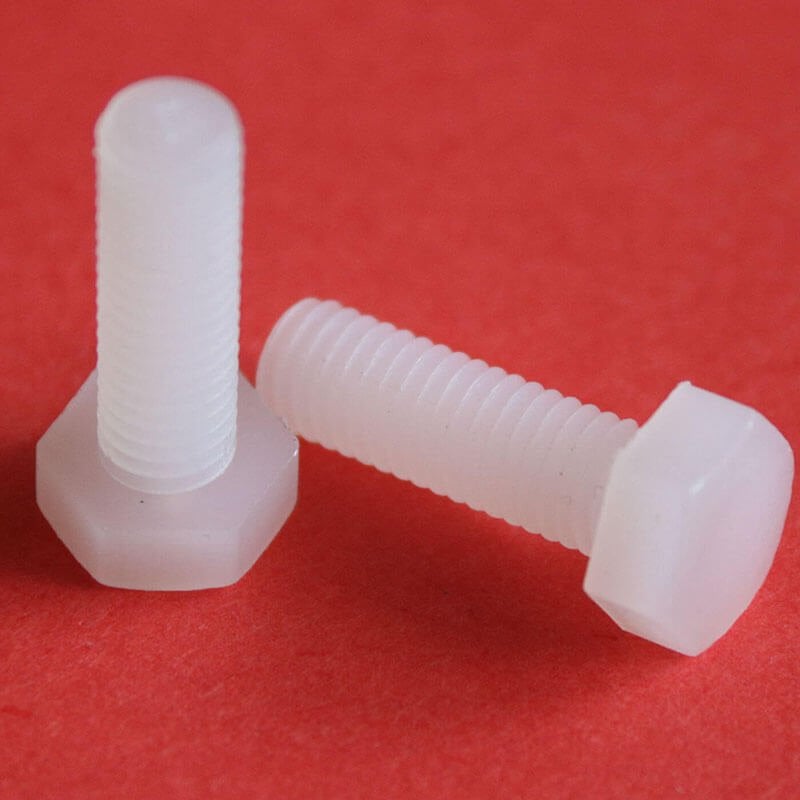

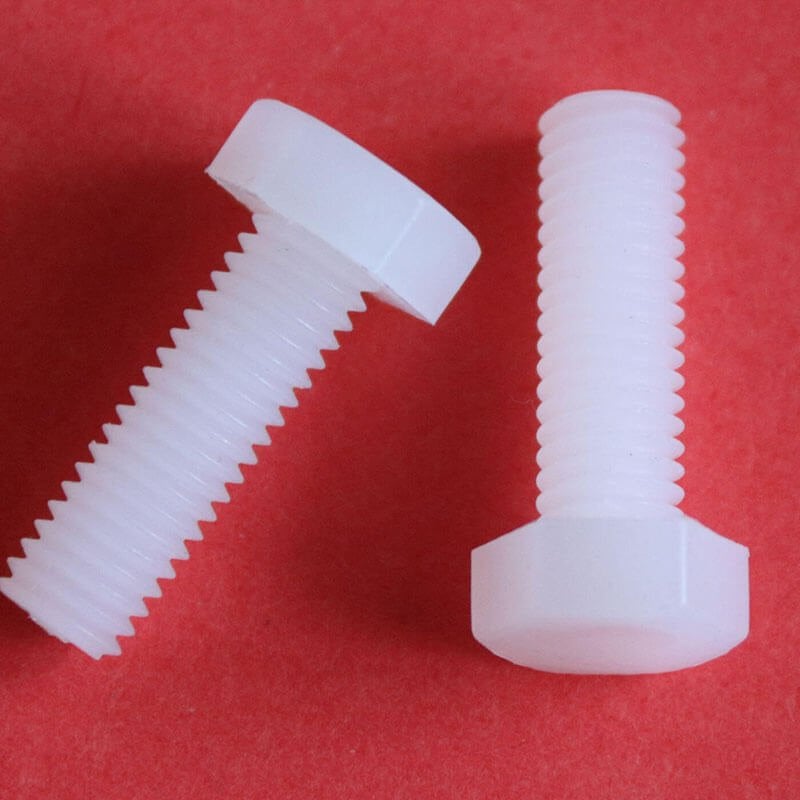

PVDF Hex Bolts Size M3-M20
$12.50 – $45.60

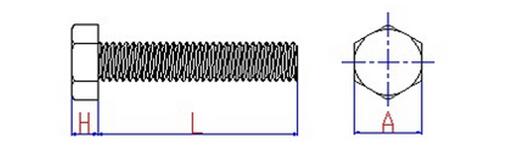

- Size = Thread diameter – Pitch x Length
- Length measured from under the head
- Unit: mm
PVDF Hex Bolts Metric Size M3-M20
Unit: mm
| Thread Dia. | Pitch | A | H |
|---|---|---|---|
| M3 | 0.5 | 5.3-5.5 | 1.8-2 |
| M4 | 0.7 | 6.78-7 | 2.6-2.8 |
| M5 | 0.8 | 7.78-8 | 3.4-3.6 |
| M6 | 1 | 9.78-10 | 3.9-4.1 |
| M8 | 1.25 | 12.7-13 | 5.15-5.45 |
| M10 | 1.5 | 15.73-16 | 6.3-6.5 |
| M12 | 1.75 | 17.73-18 | 7.8-8 |
| M16 | 2 | 23.67-24 | 9.82-10 |
| M18 | 2.5 | 26.67-27 | 11.15-11.5 |
| M20 | 2.5 | 29.7-30 | 12.28-12.5 |
| Head Style | Hex |
|---|---|
| Material | PVDF |
| Measure System | Metric |
| Thread Direction | Right |
| Thread Spacing | Coarse |
| Threading | Full Threaded |
