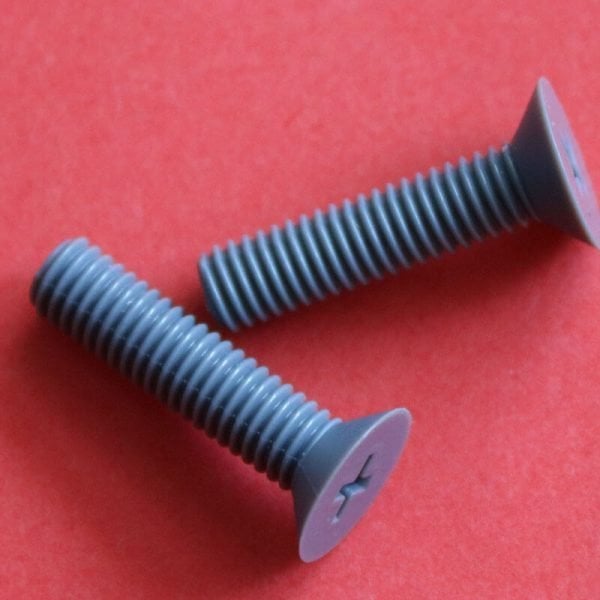

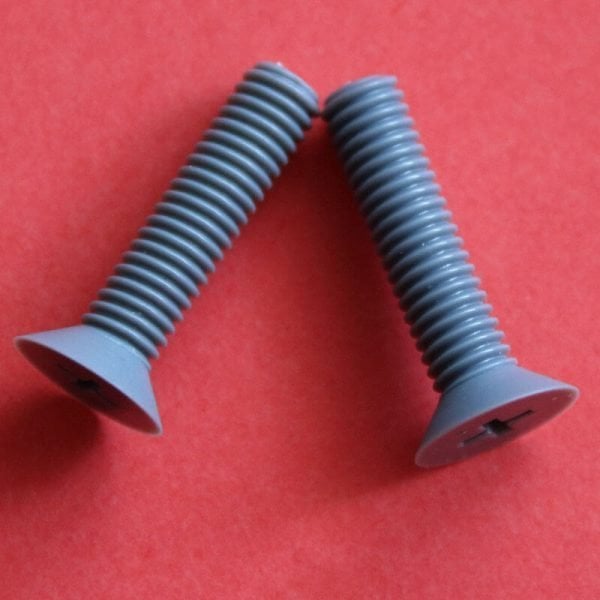

PVC Screws Countersunk Flat Head Phillips Drive
$14.00 – $34.50
- Size = Thread diameter x Length
- Length measured the whole screw
- Unit: mm
PVC Screws Countersunk Flat Head Phillips Drive M4-M10
| Thread Dia. | Pitch | H | A |
| M2 | 0.4 | 1.2 | 3.5-4.4 |
| M3 | 0.5 | 1.7 | 5.2-6.3 |
| M4 | 0.7 | 2.7 | 8.0-9.4 |
| M5 | 0.8 | 2.7 | 8.9-10.4 |
| M6 | 1 | 4.3 | 10.9-12.6 |
| M8 | 1.25 | 4.6 | 15.4-17.3 |
| M10 | 1.5 | 5 | 17.8-20 |
| Drive Style | Phillips |
|---|---|
| Head Style | Countersunk/Flat |
| Material | PVC |
| Measure System | Metric |
| Thread Direction | Right |
| Thread Spacing | Coarse |
| Threading | Full Threaded |
