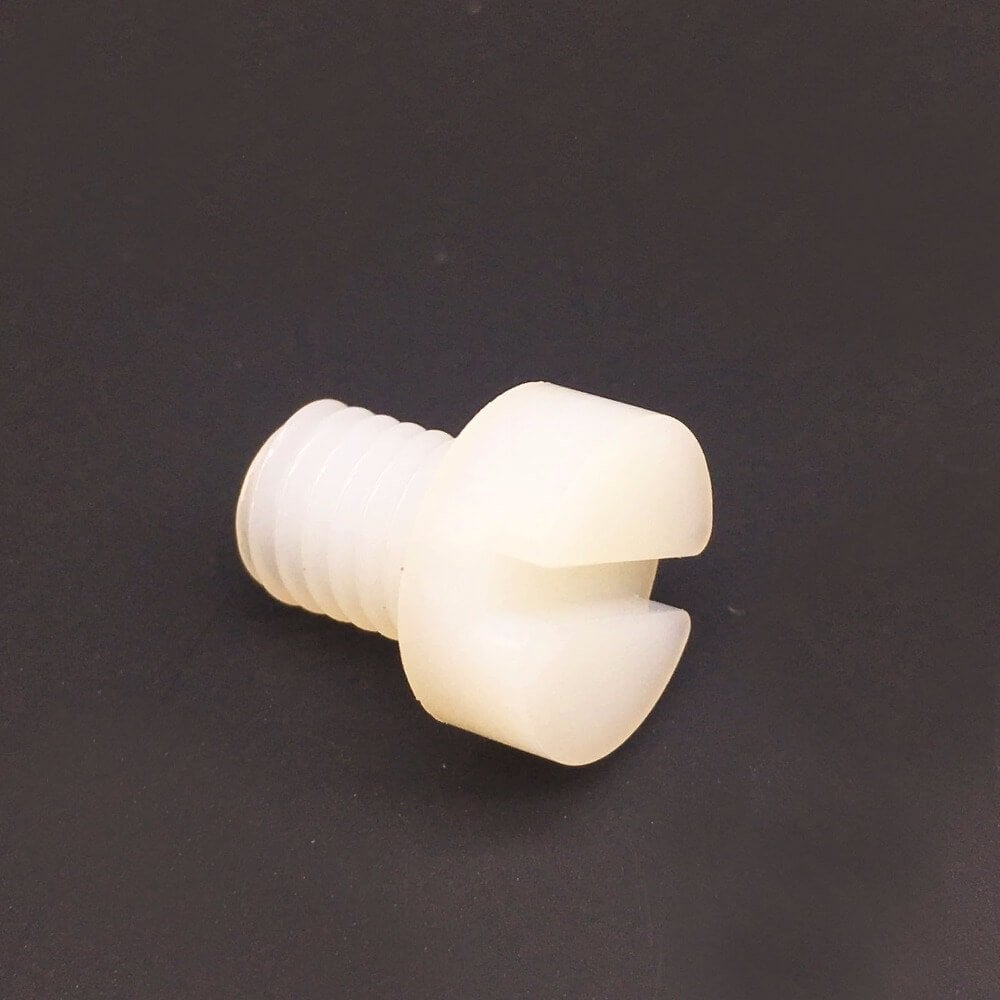

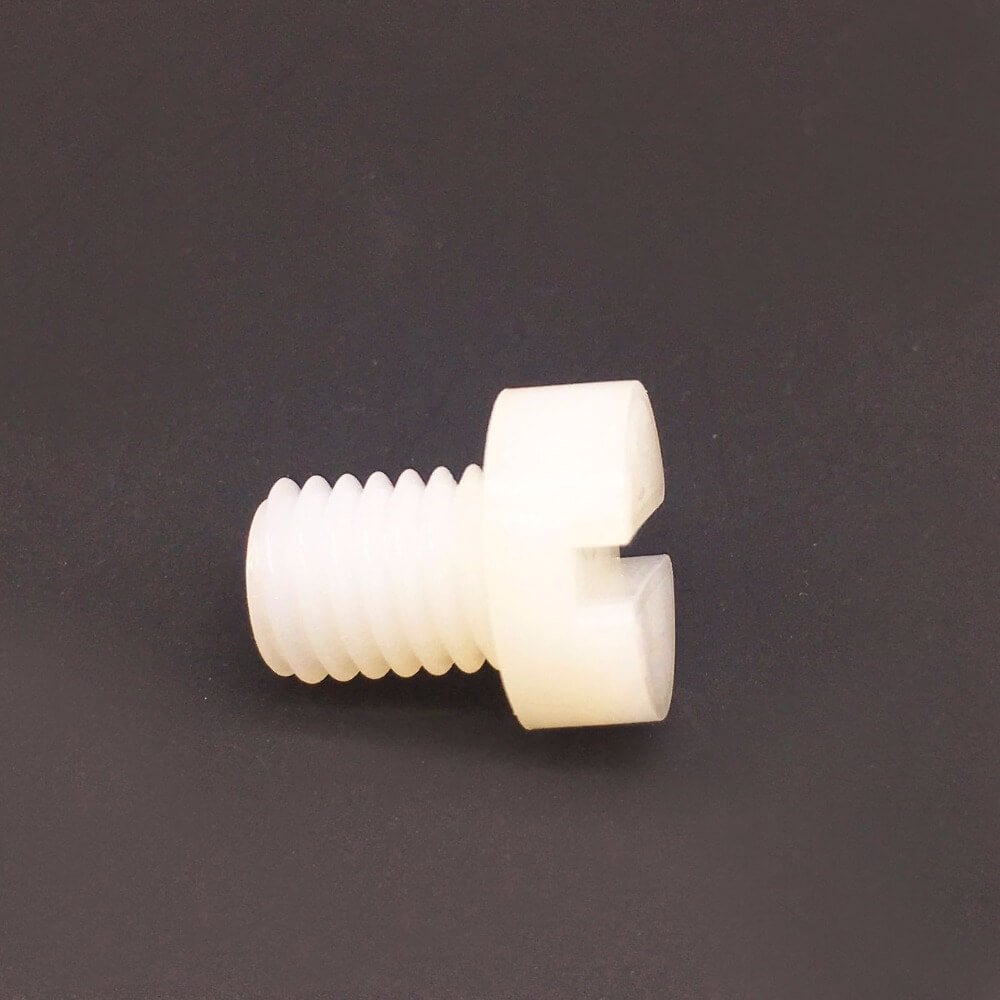

Plastic Screws Slotted Cheese Head Nylon Screws PA66 Metric,
Tough and flame-resistant (94ul-V2), white with a slight yellowish tinge
unit: mm

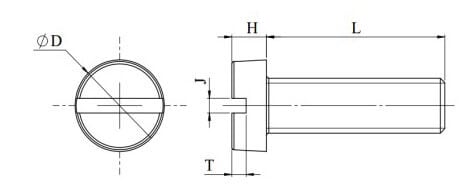

Thread Size | D | H | J | T |
M2 | 3.62-3.8 | 1.26-1.4 | 1.2 | 0.8 |
M3 | 5.4-5.5 | 1.9-2.0 | 1.3 | 1.0 |
M4 | 6.78-7.0 | 2.46-2.6 | 1.6 | 1.2 |
M5 | 6.28-8.5 | 3.12-3.3 | 2.0 | 1.5 |
M6 | 9.28-10.0 | 3.6-3.9 | 2.3 | 1.9 |
M8 | 12.73-13.0 | 4.7-5.0 | 2.8 | 2.3 |
M10 | 15.73-16.0 | 5.9-6.0 | 3.2 | 2.8 |
M12 | 18.73-19.0 | 7.8-8.0 | 3.5-4.0 | 4.0 |
