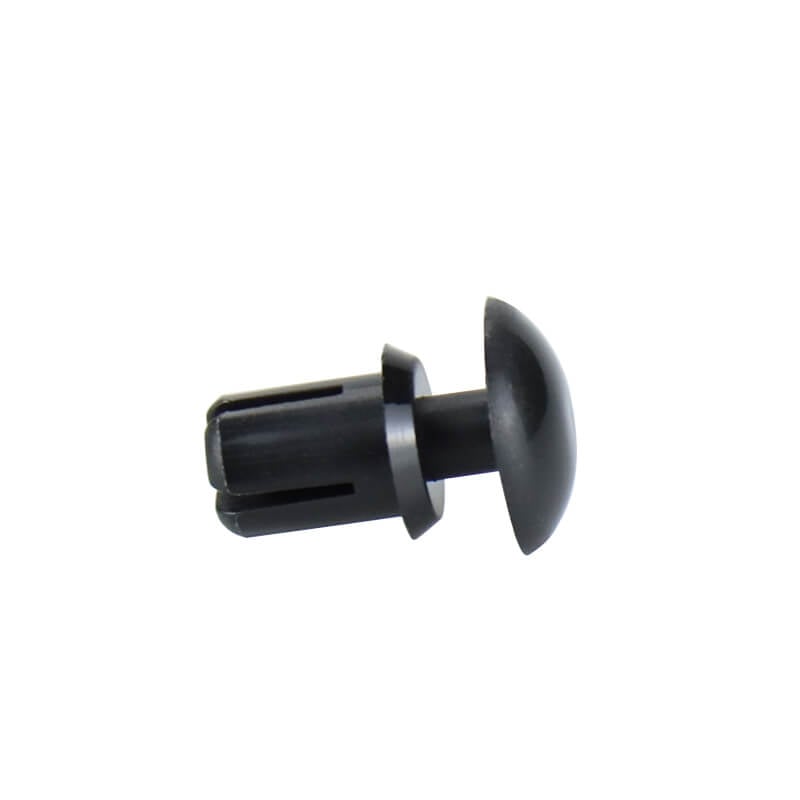

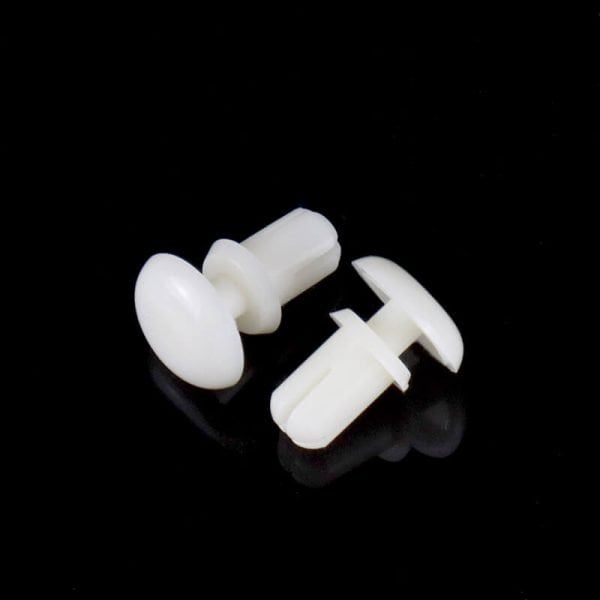

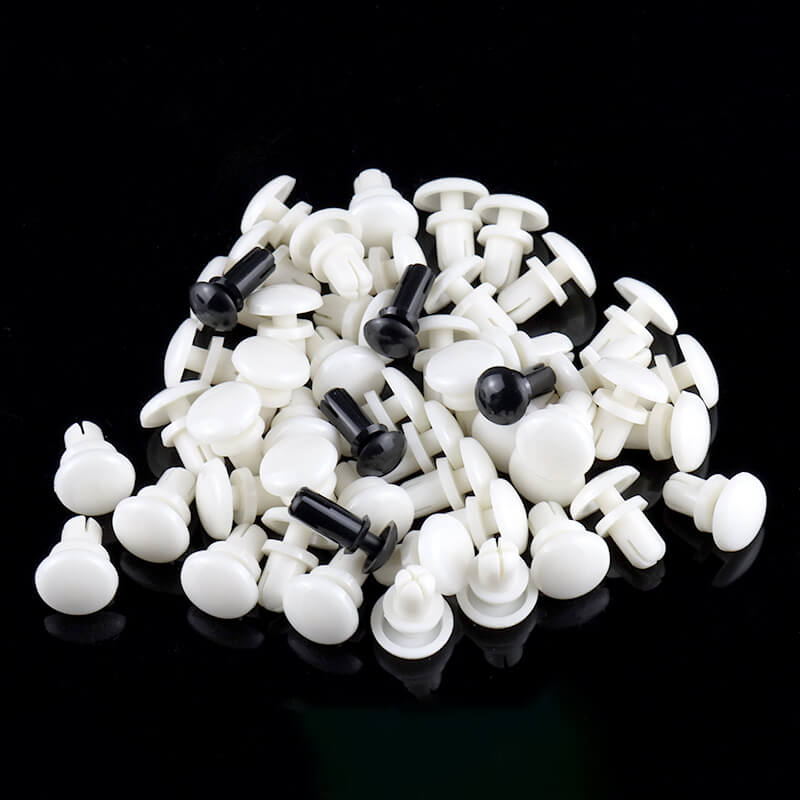

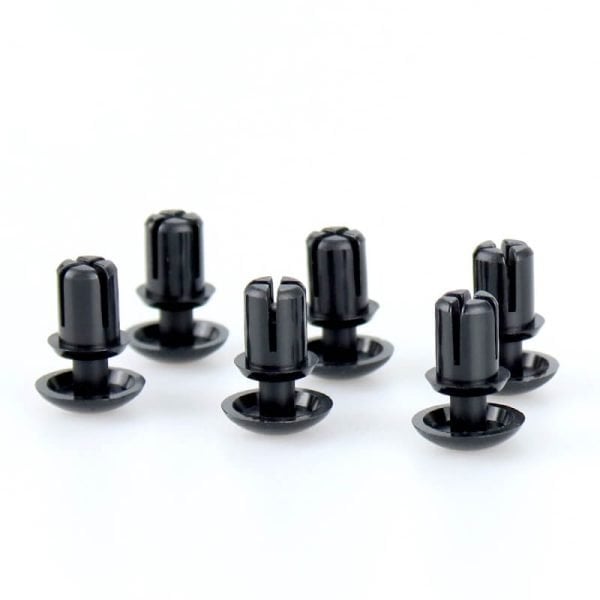

Nylon Plastic Rivets White and Black
$25.00 – $33.00
Nylon Rivets Push-in for PC Board

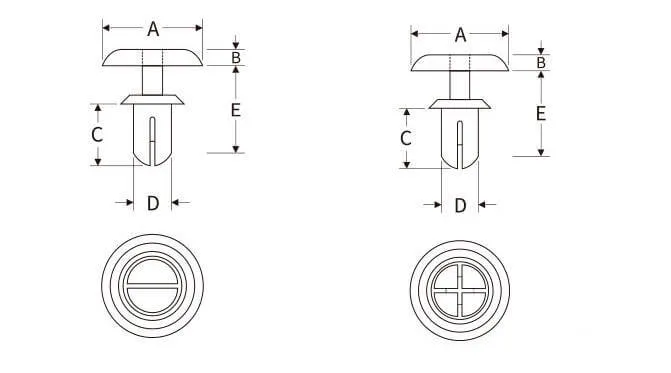

Unit: mm
| Size | Hole Dia. | Board Thick. | A | B | C | D | E |
| R2024 | 2.1 | 0.6-1.2 | 4.2 | 1.2 | 2.4 | 2 | 3.5 |
| R2032 | 2.1 | 1.3-3.0 | 4.2 | 1.2 | 3.2 | 2 | 3.5 |
| R2040 | 2.1 | 2.1-2.8 | 4.2 | 1.2 | 4 | 2 | 5.5 |
| R2048 | 2.1 | 2.9-3.6 | 4.2 | 1.2 | 4.8 | 2 | 5.5 |
| R2056 | 2.1 | 3.7-4.4 | 4.2 | 1.2 | 5.6 | 2 | 7.2 |
| R2064 | 2.1 | 4.5-5.2 | 4.2 | 1.2 | 6.4 | 2 | 7.2 |
| R2632 | 2.1 | 1.0-2.0 | 5 | 1.4 | 3.2 | 2.6 | 4.6 |
| R2642 | 2.1 | 2.1-3.0 | 5 | 1.4 | 4.2 | 2.6 | 4.6 |
| R2648 | 2.1 | 2.7-3.6 | 5 | 1.4 | 4.8 | 2.6 | 6.2 |
| R2655 | 2.1 | 3.4-4.6 | 5 | 1.4 | 5.5 | 2.6 | 6.2 |
| R2664 | 2.1 | 4.3-5.2 | 5 | 1.4 | 6.4 | 2.6 | 7.8 |
| R2672 | 2.1 | 5.1-6.0 | 5 | 1.4 | 7.2 | 2.6 | 7.8 |
| R3035 | 3.1 | 1.0-2.0 | 6.4 | 1.6 | 3.5 | 3 | 5.1 |
| R3045 | 3.1 | 2.0-3.0 | 6.4 | 1.6 | 4.5 | 3 | 6.1 |
| R3055 | 3.1 | 3.0-4.0 | 6.4 | 1.6 | 5.5 | 3 | 6.1 |
| R3065 | 3.1 | 4.0-5.0 | 6.4 | 1.6 | 6.5 | 3 | 7.1 |
| R3075 | 3.1 | 5.0-6.0 | 6.4 | 1.6 | 7.5 | 3 | 9 |
| R3080 | 3.1 | 5.5-6.5 | 6.4 | 1.6 | 8 | 3 | 9 |
| R3090 | 3.1 | 6.5-7.5 | 6.4 | 1.6 | 9 | 3 | 11 |
| R3100 | 3.1 | 7.5-8.5 | 6.4 | 1.6 | 10 | 3 | 11 |
| R3230 | 3.1 | 20.5-21.5 | 6.4 | 1.6 | 23 | 3 | 24 |
| R3535 | 3.6 | 2.1-2.2 | 6.4 | 1.6 | 3.5 | 3.5 | 5.1 |
| R3545 | 3.6 | 2.2-3.1 | 6.4 | 1.6 | 4.5 | 3.5 | 6.1 |
| R3550 | 3.6 | 2.7-3.6 | 6.4 | 1.6 | 5 | 3.5 | 6.1 |
| R3555 | 3.6 | 3.2-4.1 | 6.4 | 1.6 | 5.5 | 3.5 | 7.1 |
| R3560 | 3.6 | 3.7-4.6 | 6.4 | 1.6 | 6 | 3.5 | 7.1 |
| R3570 | 3.6 | 4.7-5.5 | 6.4 | 1.6 | 7 | 3.5 | 9.5 |
| R3580 | 3.6 | 5.7-6.6 | 6.4 | 1.6 | 8 | 3.5 | 9.5 |
| R4050 | 4.1 | 2.5-3.5 | 8 | 1.8 | 5 | 4 | 7.1 |
| R4060 | 4.1 | 3.5-4.5 | 8 | 1.8 | 6 | 4 | 9 |
| R4070 | 4.1 | 4.6-5.5 | 8 | 1.8 | 7 | 4 | 9 |
| R4080 | 4.1 | 5.5-6.5 | 8 | 1.8 | 8 | 4 | 11 |
| R4090 | 4.1 | 6.5-7.5 | 8 | 1.8 | 9 | 4 | 11 |
| R4100 | 4.1 | 7.5-8.5 | 8 | 1.8 | 10 | 4 | 11 |
| R4120 | 4.1 | 9.0-10.0 | 8 | 1.8 | 12 | 4 | 14 |
| R5045 | 5.1 | 1.5-2.5 | 9 | 2.2 | 4.5 | 5 | 6.5 |
| R5055 | 5.1 | 2.5-3.5 | 9 | 2.2 | 5.5 | 5 | 6.5 |
| R5065 | 5.1 | 3.5-4.5 | 9 | 2.2 | 6.5 | 5 | 8.5 |
| R5075 | 5.1 | 4.5-5.5 | 9 | 2.2 | 7.5 | 5 | 8.5 |
| R5085 | 5.1 | 5.5-6.5 | 9 | 2.2 | 8.5 | 5 | 10.5 |
| R5095 | 5.1 | 6.5-7.5 | 9 | 2.2 | 9.5 | 5 | 10.5 |
| R5105 | 5.1 | 7.5-8.5 | 9 | 2.2 | 10.5 | 5 | 12 |
| R6060 | 6.1 | 2.5-4.0 | 12 | 3 | 9 | 6 | 9 |
| R6080 | 6.1 | 4.0-5.5 | 12 | 3 | 8 | 6 | 10 |
