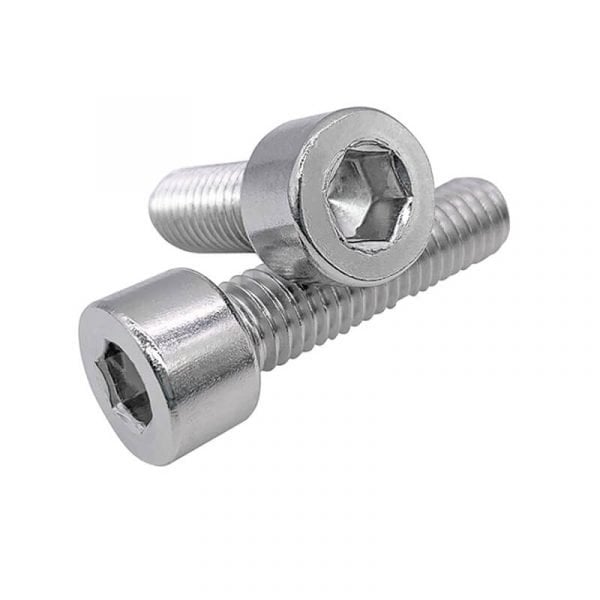

Non-standard Screws Precision Small Head Stainless
$23.60 – $37.50
- Size = thread diameter x Length
- Length measured from under the head
- Unit: mm
- Material Stainless Steel 304
Non-standard Metric Screws Precision Small Head Stainless Steel 304
unit:
| Thread Dia. | M2.5 | M3 |
| Pitch | 0.45 | 0.5 |
| dk | 3.8 | 4.5 |
| k max | 2.5 | 3.0 |
| k min | 2.36 | 2.86 |
| s max | 2.08 | 2.58 |
| s min | 2.02 | 2.52 |
| t | 1.1 | 1.3 |
| Weight | N/A |
|---|---|
| Drive Style | Hex |
| Head Style | Hex Socket |
| Material | Stainless Steel 304 |
| Measure System | Metric |
| Thread Direction | Right |
| Thread Spacing | Coarse |
| Threading | Full Threaded |
