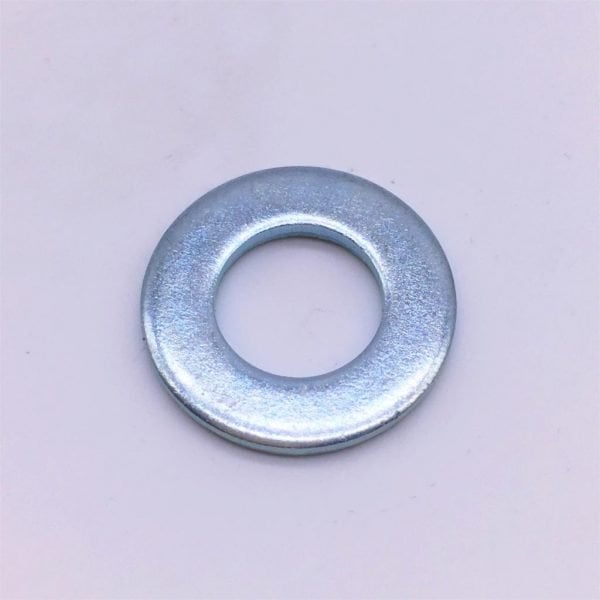

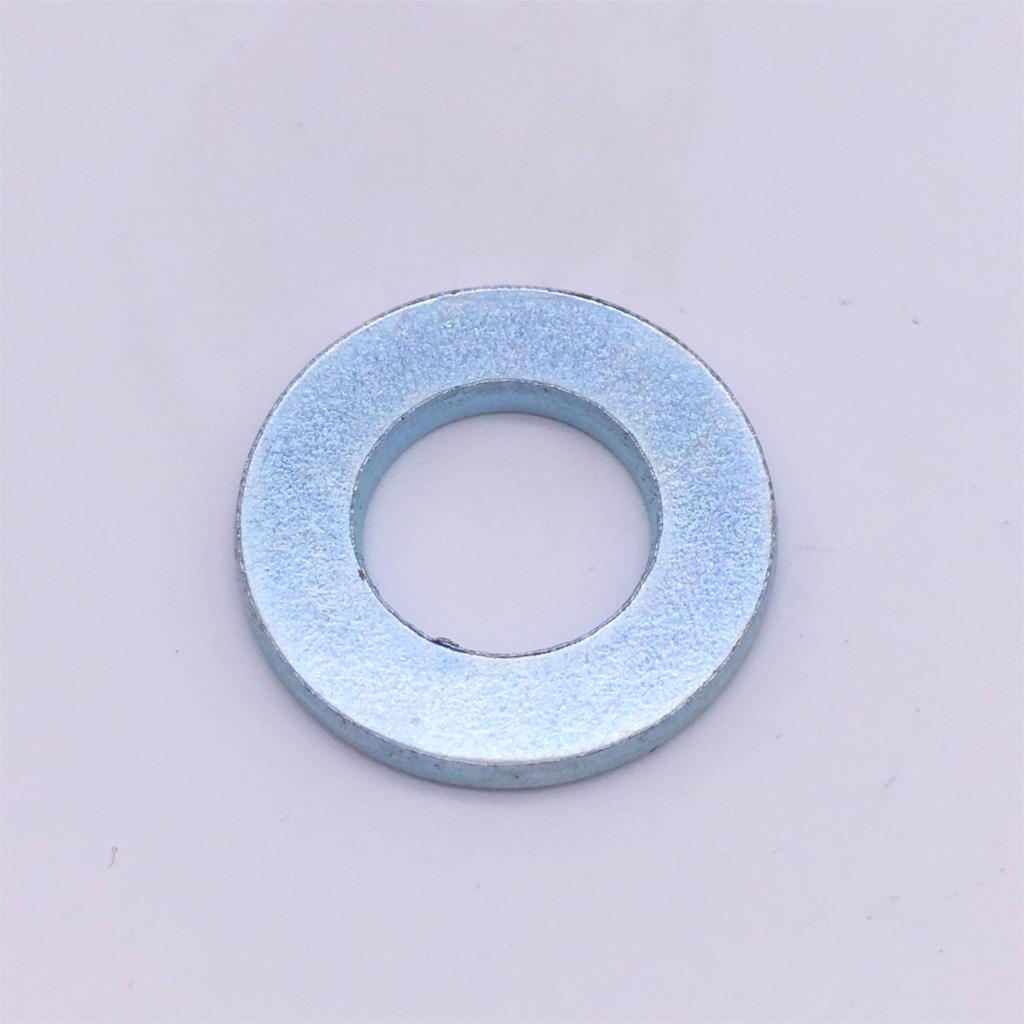

Metal Washers Flat Steel Zinc Plated
$9.00 – $32.00
Metal Washers Flat Steel Zinc Plated
unit:mm
| size | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 20 | 22 | 24 | 30 | |
| d | max | 1.84 | 2.34 | 2.84 | 3.38 | 4.48 | 5.48 | 6.62 | 8.62 | 10.77 | 13.27 | 17.27 | 19.33 | 21.33 | 23.33 | 25.33 | 31.39 |
| min | 1.7 | 2.2 | 2.7 | 3.2 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | 17 | 19 | 21 | 23 | 25 | 31 | |
| dc | max | 4 | 5 | 6 | 7 | 9 | 10 | 12 | 16 | 20 | 24 | 30 | 34 | 37 | 39 | 44 | 56 |
| min | 3.7 | 4.7 | 5.7 | 6.64 | 8.64 | 9.64 | 11.57 | 15.57 | 19.48 | 23.48 | 29.48 | 33.38 | 36.38 | 38.38 | 43.38 | 55.26 | |
| h | max | 0.35 | 0.35 | 0.55 | 0.55 | 0.9 | 1.1 | 1.8 | 1.8 | 2.2 | 2.7 | 3.3 | 3.3 | 3.3 | 3.3 | 4.3 | 4.3 |
| min | 0.25 | 0.25 | 0.45 | 0.45 | 0.7 | 0.9 | 1.4 | 1.4 | 1.8 | 2.3 | 2.7 | 2.7 | 2.7 | 2.7 | 3.7 | 3.7 | |
| KG/ MPCS | 0.024 | 0.037 | 0.088 | 0.119 | 0.308 | 0.443 | 1.02 | 1.83 | 3.57 | 6.27 | 11.3 | 14.7 | 17.16 | 18.35 | 32.33 | 53.64 | |
| Weight | N/A |
|---|---|
| Standard | DIN125A |
