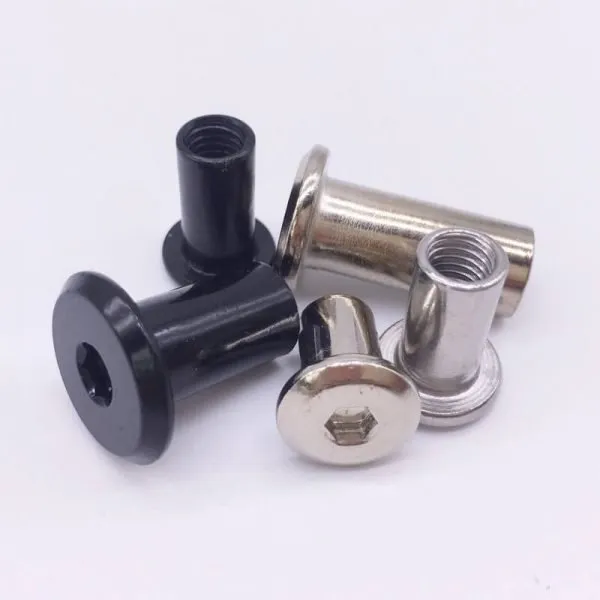

M6 M8 1/4-20 Barrel Nut Black Flat Head Hex Socket Sleeve Furniture Hardware
$10.70 – $74.00
- Size = Threads x Length(measured from under the head)
- unit: mm
Barrel Nut for Furniture Size Chart
| Threads | Pitch | Barrel Dia. (mm) | Head Dia.(mm) | Drive Key(mm) |
| M3 | 0.5 | 3.9 | 8.4 | 2.5 |
| M4 | 0.7 | 4.9 | 8.7 | 2.5 |
| M5 | 0.8 | 5.9 | 10.7 | 3 |
| M6 | 1 | 7.9 | 13.1 | 4 |
| M8 | 1.25 | 9.9 | 16.3 | 5 |
| M10 | 1.5 | 11.9 | 20 | 6 |
| Material | Carbon Steel, Stainless Steel 304 |
|---|---|
| Measure System | Inch, Metric |
| Nuts Style | Barrel |
| Thread Direction | Right |
| Thread Spacing | Coarse |
Product Enquiry
