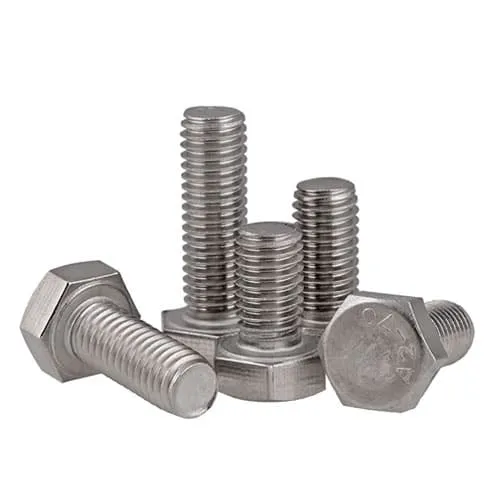

M2-M36 Bolts Hex Head Cap Screws Stainless Steel 304 DIN933 Metric
$5.00 – $63.39
- Metric Bolts
- Hex Head
- Stainless Steel 304
- Size: Thread x Length
- Length measured from under the head

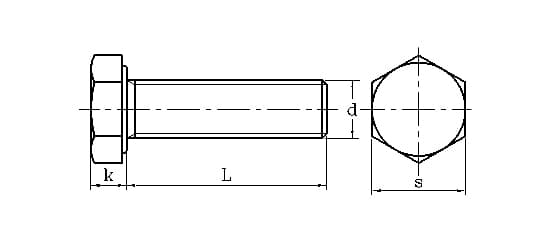

| d | Pitch | K | S | ||
| max | min | max | min | ||
| M3 | 0.5 | 2.2 | 1.9 | 5.5 | 5.25 |
| M4 | 0.7 | 3 | 2.8 | 7 | 6.65 |
| M5 | 0.8 | 3.74 | 3.26 | 8 | 7.65 |
| M6 | 1 | 4.24 | 3.76 | 10 | 9.65 |
| M7 | 1 | 5.04 | 4.56 | 11 | 10.57 |
| M8 | 1.25 | 5.54 | 5.06 | 13 | 12.57 |
| M10 | 1.5 | 6.69 | 6.11 | 17 | 16.57 |
| M12 | 1.75 | 7.79 | 7.21 | 19 | 18.48 |
| M14 | 2 | 9.09 | 8.51 | 22 | 21.16 |
| M16 | 2 | 10.29 | 9.71 | 24 | 23.16 |
| M18 | 2.5 | 11.85 | 11.15 | 27 | 26.15 |
| M20 | 2.5 | 12.85 | 12.15 | 30 | 29.16 |
| Head Style | Hex |
|---|---|
| Material | Stainless Steel 304 |
| Measure System | Metric |
| Thread Direction | Right |
| Thread Spacing | Coarse |
| Threading | Full Threaded |
