DIN 5406 Lock Washer Locking Plates For Rolling Bearings
$13.30 – $45.30

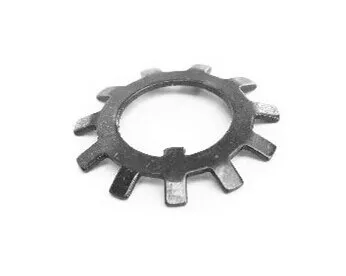

DIN 5406 Lock Washer Locking Plates For Rolling Bearings

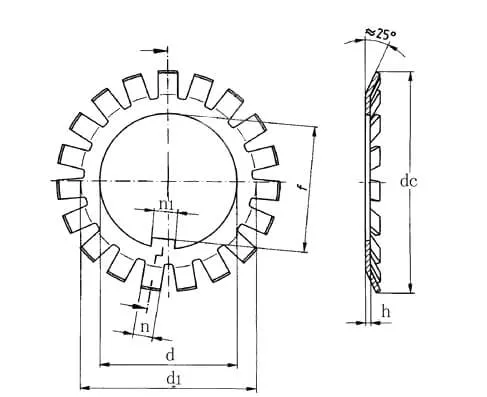

unit: mm
| Size | 10 | 12 | 15 | 17 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |
| d | Max | 10.17 | 12.205 | 15.205 | 17.205 | 20.24 | 25.24 | 30.24 | 35.28 | 40.28 | 45.29 | 50.29 |
| Min | 10.08 | 12.095 | 15.095 | 17.095 | 20.11 | 25.11 | 30.11 | 35.12 | 40.12 | 45.13 | 50.13 | |
| dc | 21 | 25 | 28 | 32 | 36 | 42 | 49 | 57 | 62 | 69 | 74 | |
| d1 | 13.5 | 17 | 21 | 24 | 26 | 32 | 38 | 44 | 50 | 56 | 61 | |
| n | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 | |
| n1 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 6 | |
| s1 | 8.5 | 10.5 | 13.5 | 15.5 | 18.5 | 23 | 27.5 | 32.5 | 37.5 | 42.5 | 47.5 | |
| h | 1 | 1 | 1 | 1 | 1 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| code | MB 0 | MB 1 | MB 2 | MB 3 | MB 4 | MB 5 | MB 6 | MB 7 | MB 8 | MB 9 | MB 10 | |
| Material | Carbon Steel |
|---|---|
| Finished | Black |
