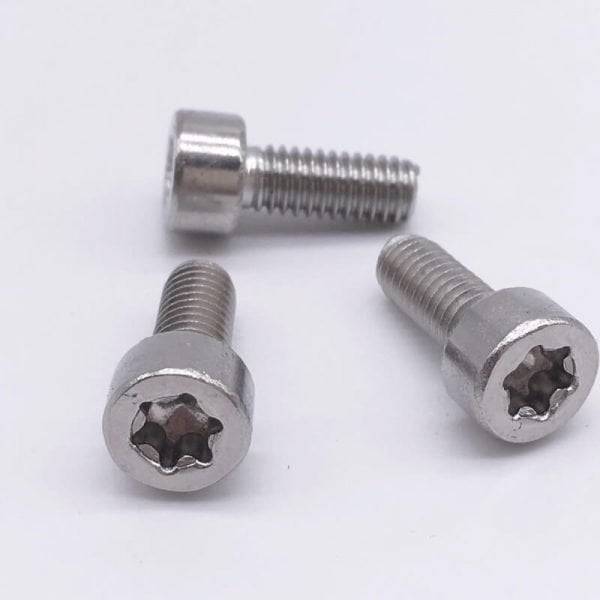

Metric Cap Screws Torx Socket Head Small Bolts with Thin Head Thickness
Material Stainless Steel 304 also known as stainless steel 18-8
Unit: mm
Thread Dia. | Pitch | Head Diameter | Head Thickness | Torx Drive |
M1.6 | 0.35 | 2.95-3.05 | 0.96-1.1 | T4 |
M2 | 0.4 | 3.62-3.8 | 1.41-1.55 | T6 |
M2.5 | 0.45 | 4.32-4.5 | 1.71-1.85 | T8 |
M3 | 0.5 | 5.32-5.5 | 2.26-2.4 | T10 |
M4 | 0.7 | 6.78-7.0 | 2.92-3.1 | T20 |
M5 | 0.8 | 8.28-8.5 | 3.47-3.65 | T25 |
M6 | 1.0 | 9.78-10.0 | 4.1-4.4 | T30 |
M8 | 1.25 | 12.73-13.0 | 5.5-5.8 | T45 |
