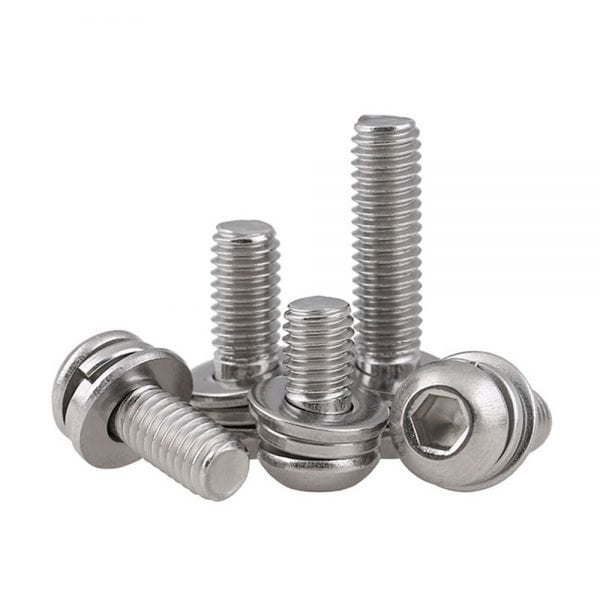

Button Head SEMS Screws Spring Washer and Flat Washers Combination Stainless Steel 304
$10.20 – $28.70
- Button Head Hex Socket
- 304 Stainless Steel
- Size = d x L
- Length measured from under the head
 |
||||||||
| Unit: mm | ||||||||
| Threads | Pitch | dc | dk | k | h | Hex Keys | ||
| M3 | 0.5 | 6.8 | 5.4 | 1.4 | 0.5 | 2.0 | ||
| M4 | 0.7 | 8.7 | 7.4 | 2.4 | 0.5 | 2.5 | ||
| M5 | 0.8 | 9.7 | 9 | 2.7 | 0.7 | 3.0 | ||
| M6 | 1.0 | 11.5 | 10.2 | 3.1 | 1.2 | 4.0 | ||
| Weight | N/A |
|---|---|
| Head Style | Button Head |
| Length | measured from under head |
| Material | Stainless Steel 304 |
