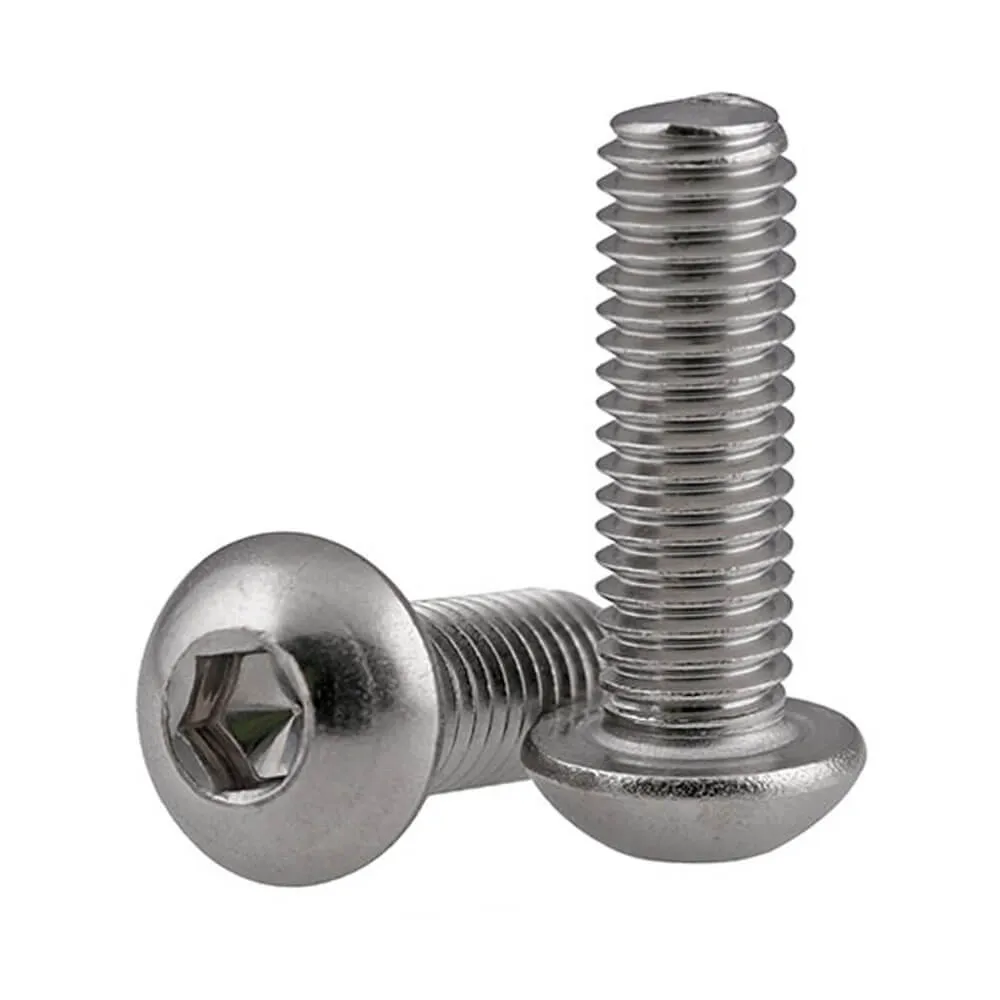

Button Head Cap Screw Stainless Steel
$10.90 – $50.00
- Size = thread diameter x Length
- Length measured from under the head
- Material: Stainless steel 18-8
Button Head Screws Cap Socket Hex Drive,
Dimensions M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12,
Stainless Steel 304 also known as stainless steel 18-8
| d | P | dk | K | S | t | |||
| max | min | max | min | max | min | min | ||
| M2 | 0.4 | 3.8 | 3.5 | 1.8 | 1.5 | – | – | – |
| M2.5 | 0.45 | 4.6 | 4.1 | 1.9 | 1.5 | – | – | – |
| M3 | 0.5 | 5.7 | 5.4 | 1.65 | 1.40 | 2.045 | 2.020 | 1.04 |
| M4 | 0.7 | 7.6 | 7.24 | 2.20 | 1.95 | 2.56 | 2.52 | 1.3 |
| M5 | 0.8 | 9.5 | 9.14 | 2.75 | 2.50 | 3.071 | 3.020 | 1.56 |
| M6 | 1 | 10.5 | 10.07 | 3.3 | 3.0 | 4.084 | 4.020 | 2.08 |
| M8 | 1.25 | 14 | 13.57 | 4.4 | 4.1 | 5.084 | 5.020 | 2.6 |
| M10 | 1.5 | 17.5 | 17.07 | 5.5 | 5.2 | 6.095 | 6.020 | 3.12 |
| M12 | 1.75 | 21 | 20.48 | 6.60 | 6.24 | 8.115 | 8.025 | 4.16 |
| M16 | 2 | 28 | 27.48 | 8.80 | 8.44 | 10.115 | 10.025 | 5.2 |
| Weight | N/A |
|---|---|
| Drive Style | Hex |
| Head Style | Button Head |
| Material | Stainless Steel 304 |
| Measure System | Metric |
| Thread Direction | Right |
| Thread Spacing | Coarse |
| Threading | Full Threaded |
