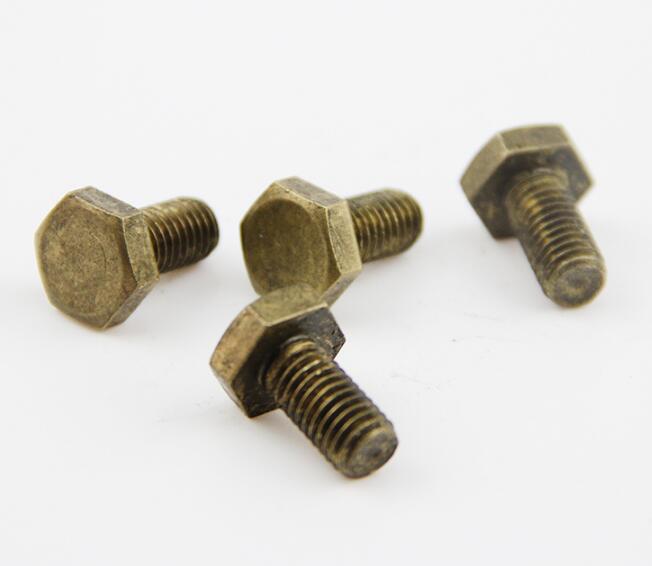

| unit：mm | |||||||
| d | Pitch | K | S | ||||
| max | min | max | min | ||||
| M4 | 0.7 | 3 | 2.8 | 7 | 6.64 | ||
| M5 | 0.8 | 3.74 | 3.26 | 8 | 7.64 | ||
| M6 | 1 | 4.24 | 3.76 | 10 | 9.64 | ||
| M7 | 1 | 5.04 | 4.56 | 11 | 10.57 | ||
| M8 | 1.25 | 5.54 | 5.06 | 13 | 12.57 | ||
| M10 | 1.5 | 6.69 | 6.11 | 17 | 16.57 | ||
| M12 | 1.75 | 7.79 | 7.21 | 19 | 18.48 | ||
| M14 | 2 | 9.09 | 8.51 | 22 | 21.16 | ||
| M16 | 2 | 10.29 | 9.71 | 24 | 23.16 | ||
| M18 | 2.5 | 11.85 | 11.15 | 27 | 26.15 | ||
| M20 | 2.5 | 12.85 | 12.15 | 30 | 29.16 | ||
| M22 | 2.5 | 14.35 | 13.65 | 32 | 31 | ||
| Size | M4x8, M4x10, M4x12, M4x16, M4x20, M4x25, M4x30, M4x35, M4x40, M4x45, M4x50, M5x8, M5x10, M5x12, M5x16, M5x20, M5x25, M5x30, M5x35, M5x40, M5x45, M5x50, M6x10, M6x12, M6x16, M6x20, M6x25, M6x30, M6x35, M6x40, M6x45, M6x50, M6x55, M6x60, M8x12, M8x16, M8x20, M8x25, M8x30, M8x35, M8x40, M8x45, M8x50, M8x55, M8x60, M8x65, M8x70, M8x80, M10x16, M10x20, M10x25, M10x30, M10x35, M10x40, M10x45, M10x50, M10x55, M10x60, M10x65, M10x70, M10x80, M10x90, M10x100 |
|---|
